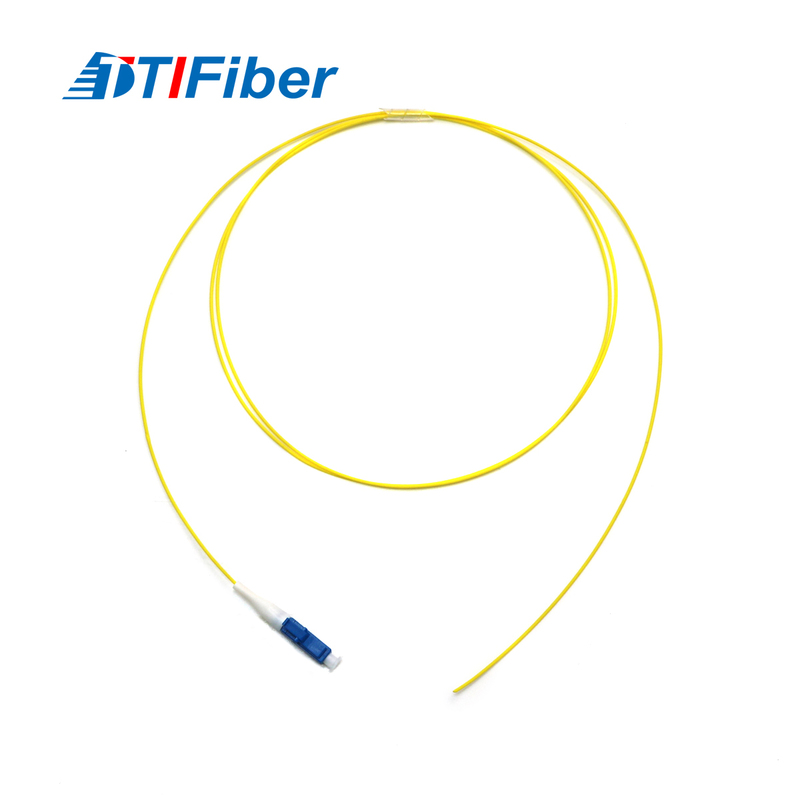

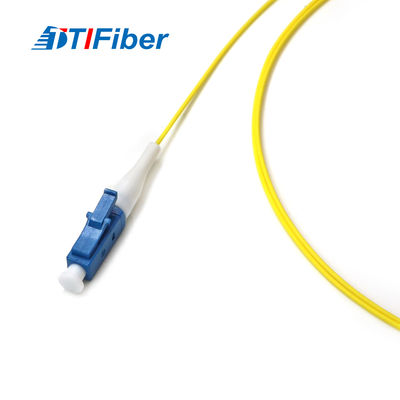

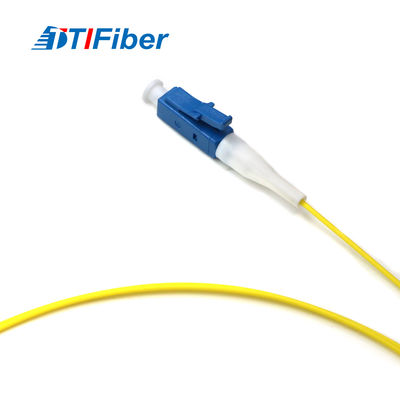

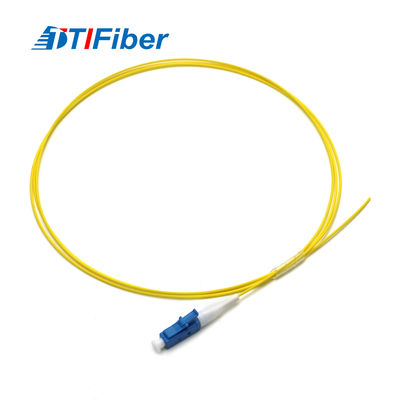

LC APC Single Mode Simplex G652D Fiber Optic Cable Network Communication Patch Cord

جزئیات محصول:

محل منبع: گوانگدونگ ، چین
نام تجاری: TTIFIBER
گواهی: CE/ROHS/ISO9001
شماره مدل: FPG

پرداخت:

مقدار حداقل تعداد سفارش: 1000
قیمت: قابل مذاکره
جزئیات بسته بندی: کیسه 1PCS/PE
زمان تحویل: 60 روز کاری
شرایط پرداخت: t/t
قابلیت ارائه: 7000 عدد در روز
بهترین قیمت مخاطب

اطلاعات تکمیلی
ژاکت: PVC/LSZH، PVC یا LSZH رنگ: آبی، زرد / آبی، زرد، نارنجی
طول: 1M/2M/3M به همین ترتیب نوع اتصال دهنده: SC/LC/ST/FC
از دست دادن: ≤0.20، MM≤0.75dB، SM≤0.50dB، ≤0.1dB، IL<0.2db اتصال: FC، SC، SC/APC (LC، LC، FC برای انتخاب)
نوع فیبر: SM 9/125 G652D، OS1، فیبر بافر محکم 9/125 Single Mode simplex، G652D/G657A1/G657A2 و غیره، G657A1 و قطر کابل: 0.9/2.0/3.0mm، 3mm، 0.9mm و غیره
برجسته کردن:

LC APC single mode fiber optic cable,G652D simplex patch cord,fiber optic pigtail with warranty

,

G652D simplex patch cord

,

fiber optic pigtail with warranty

توضیحات محصول

LC APC Single Mode Simplex G652D Fiber Optic Cable Network Communication Patch Cord
Quick Detail:
  • Cable jacket: PVC, LSZH, OFNP, OFNR
  • Cable color: Yellow, Orange, Aqua, White, Red, Green, 12 colors
  • Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
  • Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
  • Cable length: 1m, 2m, 3m, 5m....customized
  • Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized
Description:

Fiber optic pigtail is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables.

Features:
  • 100% test before shipment
  • Low insertion loss and high return loss
  • Custom Configurations Available at No Extra Charge
  • Available in fiber bunch, ribbon fan-out, pigtail available
  • Serialized & Individual Test Records
  • Meets ROHS and Bell core GR 326-core standards
Applications:
  • Fiber to The Home (FTTH)
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution
Specification:
Parameter Single Mode Multi Mode
Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO
Ferrule End-face PC | UPC | APC UPC
Insertion Loss ≤0.2dB | ≤0.2dB | ≤0.3dB ≤0.3bB
Return Loss ≥50dB | ≥55dB | ≥60dB ≥35dB
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um
End-face Geometry Radius of Curvature: 7~25mm 5~12mm | N/A
Fiber Protrusion ≤50nm | ≤100nm | N/A ≤100nm | N/A
Fiber Under Cut ≤100nm | ≤100nm | N/A ≤100nm | N/A
Apex offset ≤50um
Mechanical Exchangeability: ≤0.2dB
Salt Spray ≤0.1dB
Drop ≤0.2dB(1.5M, 5 drops)
Vibration IL ≤0.2dB(550Hz, 1.5mm)
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C
Ordering Information:
  1. Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
  2. Ferrule End-face: PC, UPC or APC
  3. Fiber Type: Single Mode(SM) or Multimode
  4. Cable Core: Simplex or Duplex
  5. Cable Diameter: 0.9mm, 2.0mm or 3.0mm
  6. Cable Length: 1, 2, 3 meter or customized
  7. Cable Type: PVC, LSZH, OFNR, OFNP…
  8. Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)

LC APC Single Mode Simplex G652D Fiber Optic Cable Network Communication Patch Cord 0
